BVA TP-SERIES
Multi-Turn to Linear. Built to Your Interface.

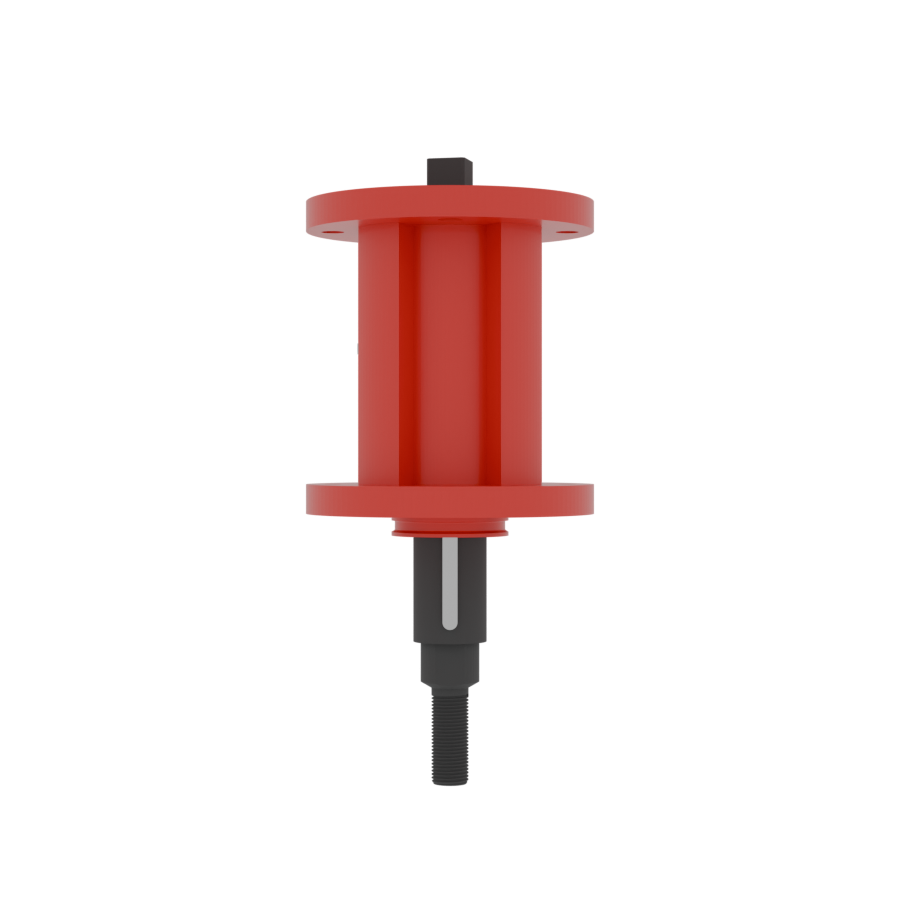

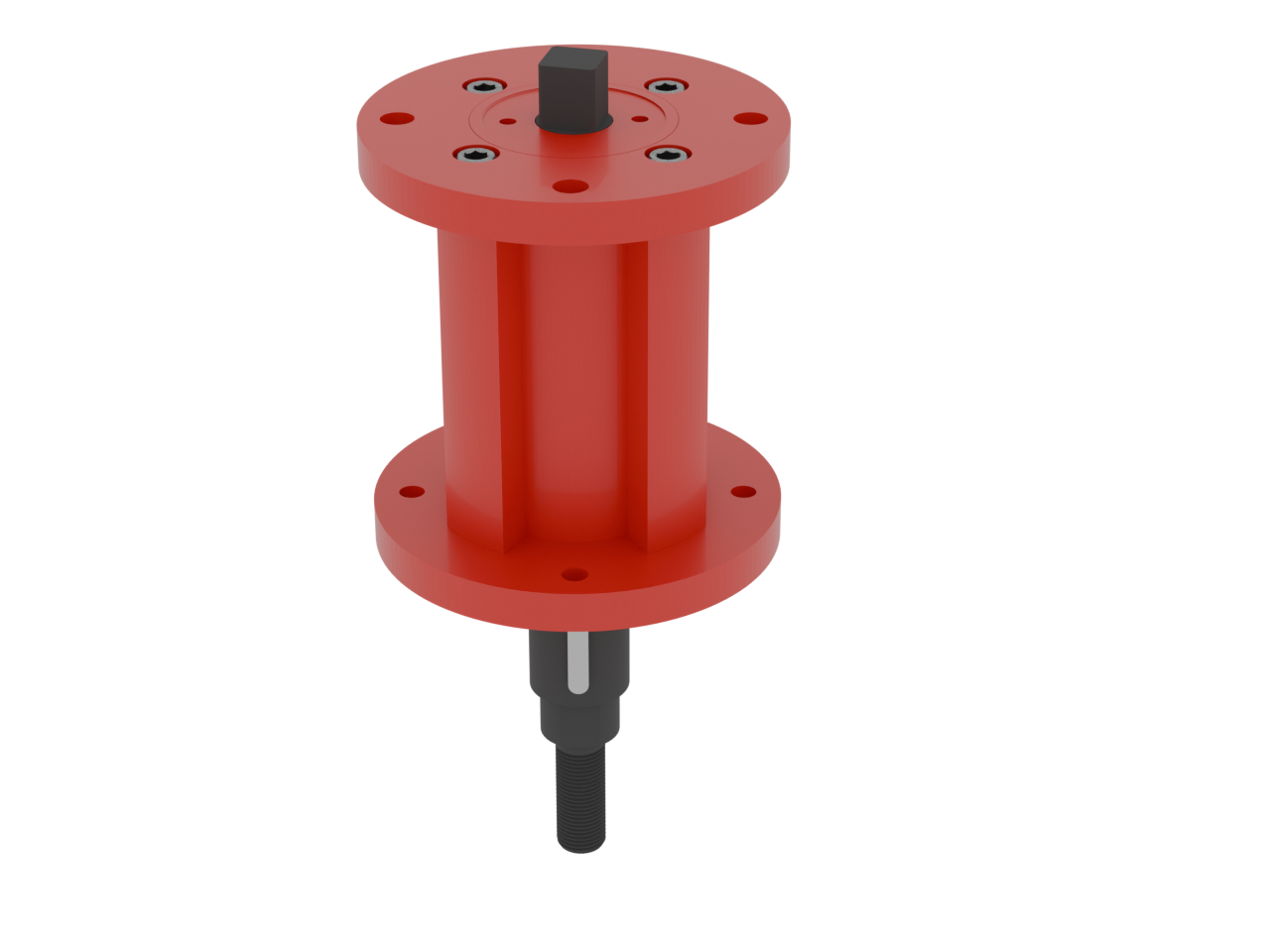

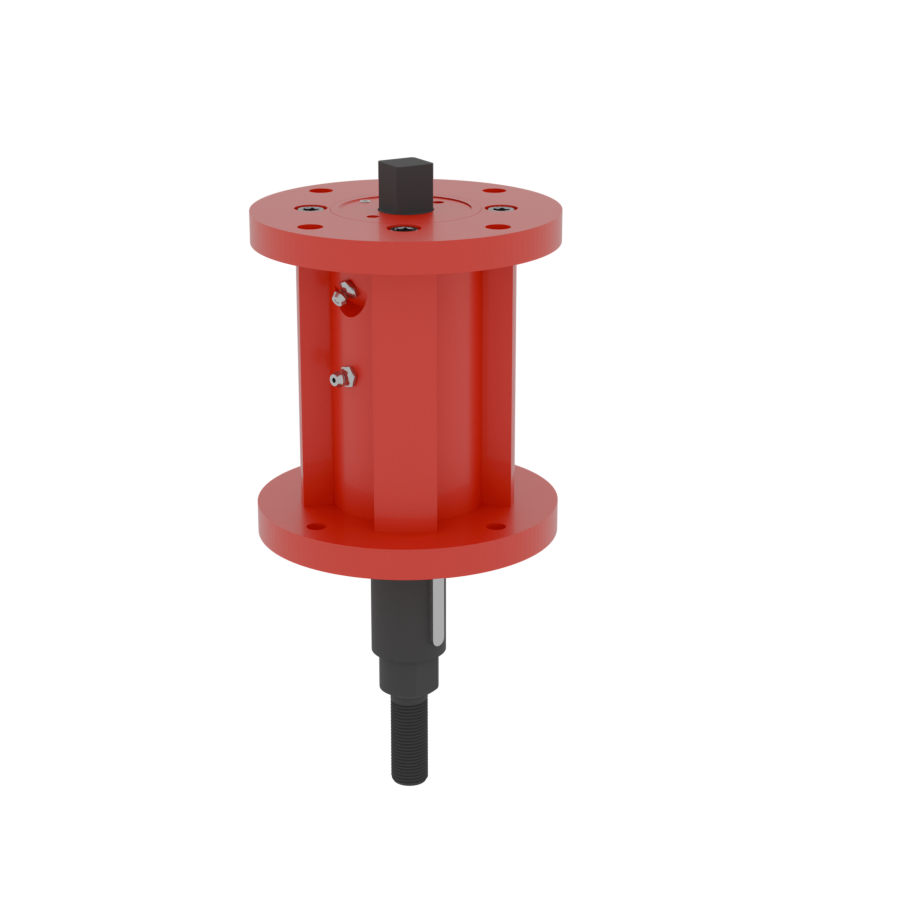

The BVA TP-Series Linear Drive is a precision-manufactured actuator component designed to convert multi-turn electric actuator rotation into controlled axial thrust via an Acme screw drive mechanism. Built to exacting tolerances in our Alberta facility, each unit is fully traceable from raw material to finished component.
The TP-Series is designed to interface with a wide range of multi-turn electric actuator platforms, including Bettis, Rotork, Torq/Plus, RTS, and Fisher-style configurations. Custom output geometry is available to match your specific actuator interface — contact us with your actuator model for a fit confirmation.
HOW IT WORKS
Rotary In. Linear Out.
A multi-turn electric actuator spins its output shaft — your TP-Series linear drive converts that rotation into controlled axial thrust through a precision Acme screw and bronze nut. The sliding stem moves linearly while the body stays fixed, delivering push-pull force to your valve or mechanism.
- Converts multi-turn electric actuator output to linear stem thrust
- Acme screw drive with bronze nut — proven, field-serviceable design
- Internal mechanical travel stops — no external limit switches required for stroke control
- Needle roller thrust bearings for high axial load capacity
- Factory pre-lubricated with synthetic EP grease rated to -40°C
- Powder coated body — customer-specified finish available
- Material certifications available on request
COMPATIBILITY
Actuator Compatibility
The BVA TP-Series is compatible with the following actuator platforms. Don't see yours listed? Contact us — custom interface geometry is our specialty.
- Bettis electric actuators
- Rotork multi-turn actuators
- Torq/Plus actuator series
- RTS electric actuators
- Fisher (Emerson) actuator configurations
- Other multi-turn electric actuator designs on request
CONFIGURATIONS
Standard Models
All configurations available to order. Custom travel lengths, interfaces, and flanges machined and built to order.
| Model | Nominal Travel | Actual Travel | Peak Thrust | Continuous Thrust | Weight | Temp Range | Status |
|---|---|---|---|---|---|---|---|
| BVA-LD-TR01 | 1" | 1.25" | Contact us | Contact us | ~8 lb | -40°C to +80°C | Available |
| BVA-LD-TR02 | 2" | 2.5" | 2,720 lbf (12.1 kN) | 1,360 lbf (6.0 kN) | ~13 lb | -40°C to +80°C | Available |
| BVA-LD-TR04 | 4" | ~4.5" | Contact us | Contact us | Contact us | -40°C to +80°C | Design phase — not in production |
TR02 thrust data based on physical validation testing. TR01 and TR04 specifications available upon inquiry. Custom configurations built to your specification.
CUSTOM CONFIGURATIONS
Any Interface. Any Pattern. Any Thread.
Because we're a machine shop, every dimension is negotiable. Tell us your actuator output and valve connection — we'll machine the interface to your specs.
Actuator Input Interface
Square drive, keyed, splined, hex, flats — any geometry we can machine

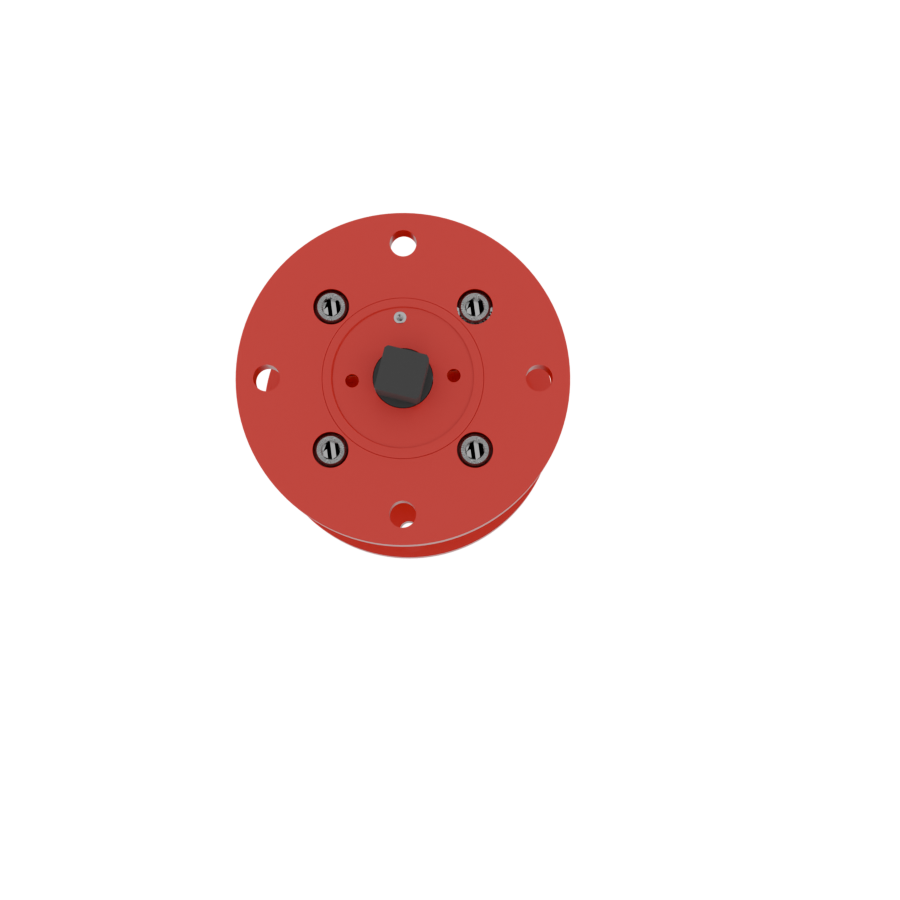

Top Flange Bolt Pattern
Matched to your actuator mounting standard (F07, F10, or custom)
Bottom Flange Bolt Pattern
Matched to your valve yoke or mounting bracket
Stem Thread & Diameter
Any thread form, pitch, and diameter to suit your valve connection
Travel Length
Standard TR01/TR02/TR04 or custom stroke to your specification
Finish & Coating
Powder coat in any RAL color, phosphate, or bare machined
LET'S BUILD TOGETHER
Have an actuator and valve that need to work together?
Send us your actuator model, valve interface requirements, and required stroke — we'll build the linear drive around your application.
